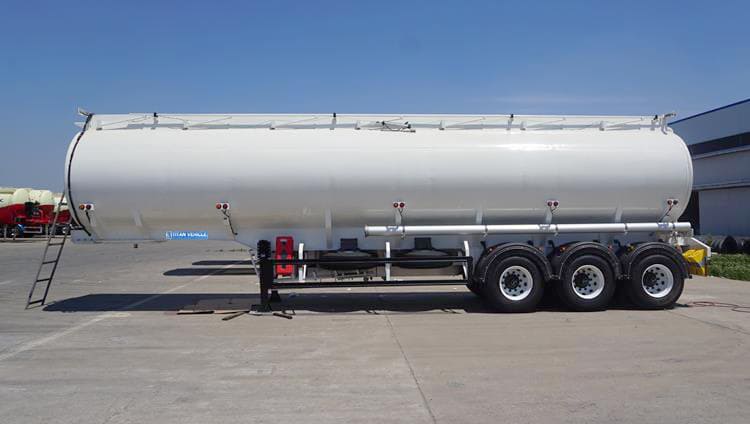

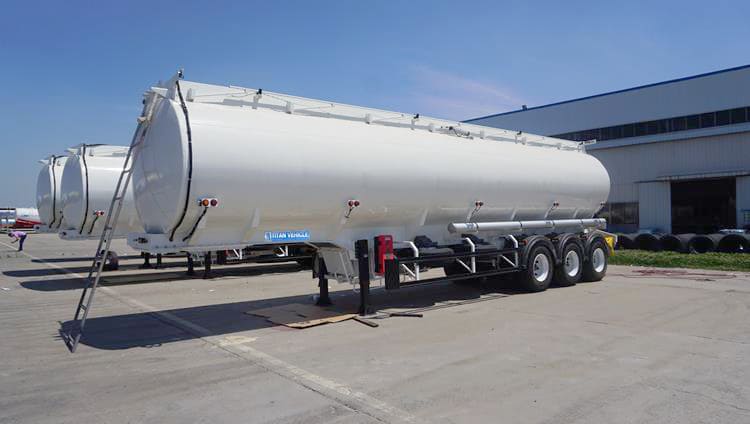

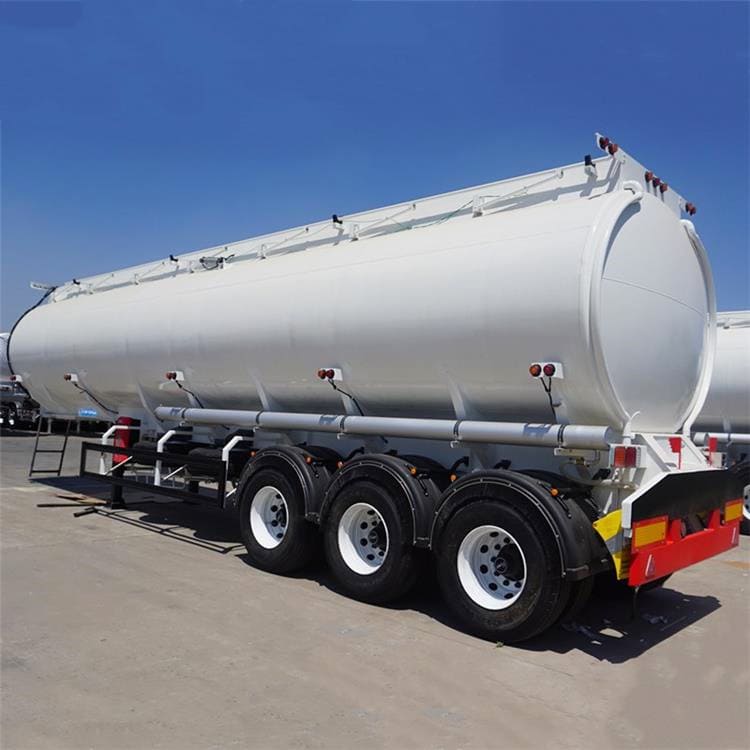

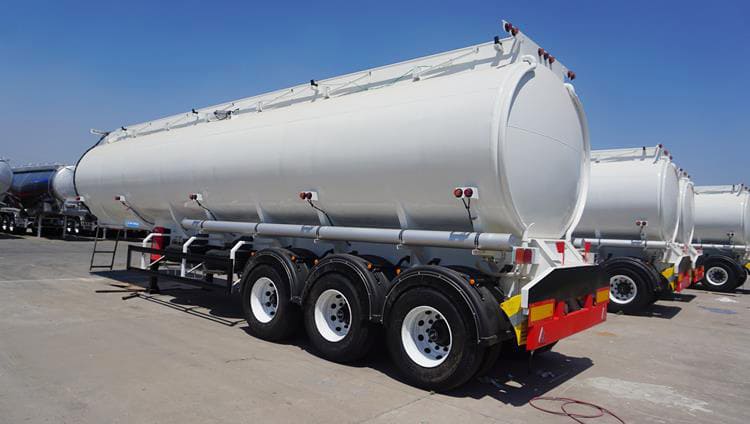

3 Axles Petrol Tanker Trailer

Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)

Tare Weight (semi trailer): About 8000-12800kg

Total volume(m³): 25-60m³

Tank Body Material: 5mm or 6mm/Q235 carbon steel

End plate: 5mm or 6mm/Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pnflatbed trailer with sidestank truck serviceeumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Optional

Discharging Pipe: 4 inch rubber hose,2pcs,6heavy duty truck parts near mesemi trailer salesm/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts container on a trailersemi truck capacityQ345 carbon steel material

Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ Tongya brand

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

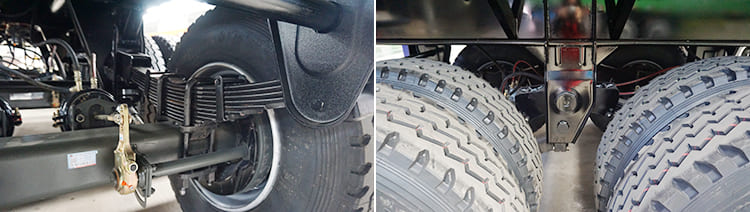

Suspension: Mechanical suspension /Germany or America type /Air Suspensiosemi trailer service18 wheeler trailer truckn

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chatrailers with sidescovered flatbed truckmber(TKL brand); 45L air tank

Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20low flatbedtruck trailer flatbed brand can be optional

ABS: Optional

Painting: Sandblasted, anti-rusttruck trailer componentslowboy flatbed trailer chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool boxbusiness in a trailertrailer in truck
